Battery pack / fuel cell / e-Powertrain
DC source/sink
Single-Channel System
I-TS-3870: Single-channel system for testing and simulation of batteries, fuel cells and powertrains. One output with up to 1500 V and 1200 A. Maximum power in single operation 650 kW, up to 2.6 MW in parallel operation. (Maximum values for voltage, current and power depending on the specific configuration).
Our high-performance test system I-TS (Infeed test system) is a high dynamic, bidirectional DC power supply with continuous and seamless transition from source to sink operation. The outstanding performance is the basis for a wide range of applications in the automotive, hydrogen and laboratory sectors.
Standard features
- The I-TS-3870 impresses even in the standard system configuration with its extensive equipment and is therefore ready for immediate use by customers from all over the world. The following is a small excerpt:
General information - Input voltage 380 / 400 V, 50 / 60 Hz
- Sense connections for voltage measurement / regulation
- DC current and voltage measurement with 0.1 % full scale accuracy
- Battery tester version
- Protection class IP20
- Noise-reduced design (vibration metals, fan control)
- Air cooling
Safety features
- Lockable main switch as load-break switch
- Safety control for Performance Level d in accordance with EN 60204-1 / ISO 13849-1
- Stop switch in cabinet door
- Voltmeter and indicator light in cabinet door
- Redundant DC output contactors
- Connection terminals for external „emergency stop“
- Connection terminals for external „stop“
- DC output electrically isolated from the AC mains (galvanic isolation)
Interfaces
- 10 inch display with touch operation
- Modbus / TCP interface
- CAN interface
- VNC interface
Options (extract)
- Security level
Increase to performance level e as a special option - Battery emulation version (increased output capacity)
Hardware and software adaptation for special applications
to improve voltage stability for battery emulation - Protective diode at the DC output Switchable diode to protect the device under test in sink-only mode
- Insulation monitoring Protective device for monitoring the galvanic isolation of the DC output
- Parallel operation Increase in available power for certain applications through master-slave operation
- Interfaces Large selection of various optional interfaces such as CAN high-speed (1 kHz), SCPI, EtherCAT, Profi bus, Profi net, analog, LabVIEW, Matlab/Simulink
- DC output contactors with higher performance
DC output contactors with increased current capability are optionally available to increase the service life - Door contact switch, door locking device, special locking cylinder
Operator safety is our top priority, therefore additional safety equipment is available for our customers
- Schaltschränke in Sonderausführungen Rittal Schaltschränke, Sondersockel, Schränke auf Rollen,
Sonderlackierungen, Aderendkennzeichnung. Das I-TS kann
an die verschiedensten Kundenwünsche und örtlichen
Gegebenheiten angepasst werden - NA-Schutz mit Netzanalysemessgerät für
Erzeugungsanlagen (VDE-AR-N 4105, VDE-AR-N 4110) Aufgrund von Richtlinien des Netzbetreibers kann ein
NA-Schutz zur Überwachung der Netzqualität für das I-TS
erforderlich sein - Wasserkühlung inklusive Erhöhung der Schutzart auf IP54 Zur Minimierung der Abwärme an den Raum bzw. der
Geräuschminderung ist eine Wasserkühlung der Schaltschränke erhältlich. Zugleich erhöht sich dadurch auch die Schutzart des I-TS

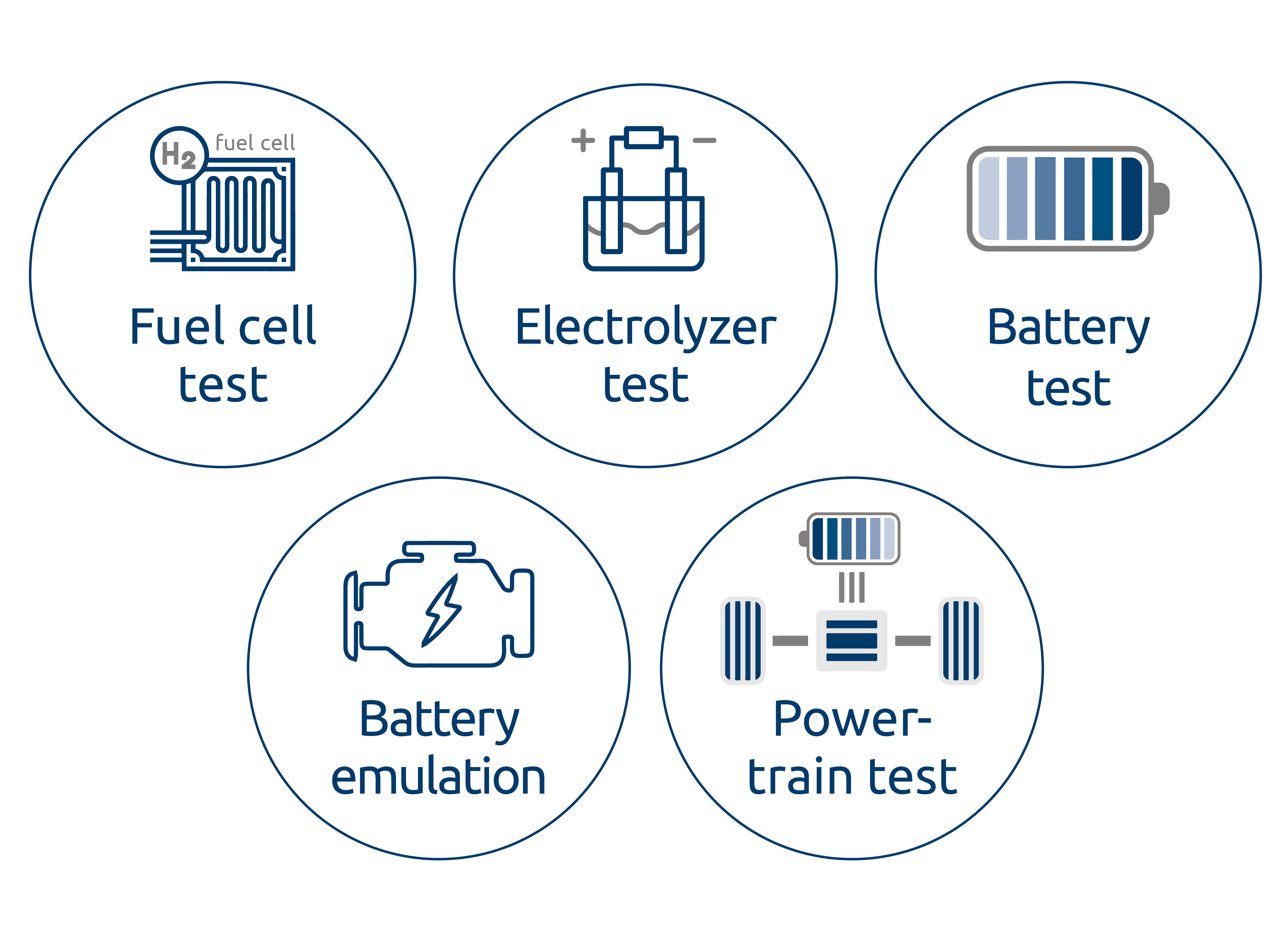

Typical applications
- Battery tests (charge and discharge tests of batteries)
- Battery simulation / battery emulation
- Load for fuel cells
- Test power supply for contactors, fuses and circuit breakers
- Test of DC motors (drive train)
- Testing of charging columns (comemso)
- Power supply to trains for maintenance purposes at the ICE (German high speed train) plants
Performance hyperbole
Technical data
Type I-TS-3870
AC mains voltage / | 380 / 400 / 440 / 480 / 690 V ± 10 %, |
Measurement accuracy | Voltage: 16 Bit ADC // Current: 16 Bit ADC |
Control accuracy | Voltage: 0,1 % fs // Current: 0,1 % fs |
Residual ripple | Voltage ≤ 0.1 % eff. fs |
Voltage tolerance dynamic | Battery tester 3% fs |
Short circuit performance | Short circuit proof: |
Permissible environmental conditions: | 1K21 / 1M11, +5 bis +40 °C |
Cooling method | Cooling method Enforced air cooling (IP20, IP21, IP23) // enforced water cooling (IP54) |
Safety of machinery - | EN ISO 13849-1 |
Safety of machinery | EN 60204-1 Exception: |
EMC Standards | EN 61000-2-4 Class 3 |
Available types
Typ | I-TS-3870-80 | I-TS-3870-120 | I-TS-3870-300 | I-TS-3870-600 | I-TS-3870-800 | I-TS-3870-1000 | I-TS-3870-1200 | I-TS-3870-1500 |
|---|---|---|---|---|---|---|---|---|
max. Voltage in V | 80 | 120 | 300 | 600 | 800 | 1000 | 1200 | 1500 |
Power in kW | 35 | 50 | 60, 120, 160 | 60, 100, 160, 250, 320, 400, 500 | 100, 160, 250, 320, 400, 500 | 60, 100, 160, 250, 320, 400, 500, 650 | 320, 650 | 400 |
Current in A |
|
|
|
|
|
|
|
|
Current rise time at 0.5x UNenn 10 % - 90 % in ms | < 1,3 | < 1,3 | < 1,0 | < 1,0 | < 1,0 | < 1,3 | < 1,0 | < 1,4 |
Subject to technical changes
